High-quality Provider of Specialty Welding and Fabricated Components

Our highly efficient and scalable fabrication division serves a wide range of applications, including skid design, pipe configuration and other components used in a variety of industries. We also integrate features to enhance the functionality of the project, including computer controls, special fittings, meters, filter/strainer and other complex systems that provide advanced technology.

Our expert team has extensive expertise in completing fabrication projects for:

Petroleum

Specialty Chemical

Agriculture

Enzyme

Mixing

Our Capabilities

Fabrication Facility Capacity

  • 36,000 sq. ft. shop space
  • 5,000 person-hours per month
  • 18 welding stations
  • 4 overhead cranes
  • <40,000-pound fabrication capacity pre-project
  • ¼” diameter up to 78” diameter
  • Over 3,000 pipe spools per month on average

Scope of Service

  • Carbon steel, stainless steel, inconel, low RE, aluminum and exotic alloys
  • Design engineering and design-assist
  • Loading and offloading skids
  • Liquid measurement and custody transfer skids
  • Launchers, receivers and pig trap skids
  • Acid and enzyme skids
  • Loading arms integration of complex components
  • Modular Fabrication
  • Conduit and instrument stands
  • Frames and supports
  • Shipping preparation and coordination

Welding Standards

  • ASME Section IX
  • API 1104
  • B31.1 Power Piping
  • B31.3 Process Piping
  • B31.4 Transportation systems for Liquid Hydrocarbons
  • B31.9
  • National Board “R” Stamp for pressure vessel repair & modification
  • ASME “PP” Pressure Piping Stamp
  • GTAW, GMAW, SMAW, and FCAW Welding Standards

Quality Control

  • In-House Quality Control Program
  • Complete QC Documentation Package
  • In-House Level 1 Certified Welding Inspector
  • Welder Continuity & qualification
  • Quality control sign-off on all shipments
  • Weld history (weld maps, heat maps, MTR on all pipe & fittings)
  • Completed Isometric drawings sent with every shipment
  • X-ray, Hydro, PT, MT, PWHT and bore score capabilities

Project Portfolio

View Larger More Details

Chilled Water Pump Skid

As part of our larger commercial projects, we designed and prefabricated this Chilled Water Pump skid. It is complete with four pumps, air separator, expansion tank and an 850-gallon buffer tank. This was insulated with an aluminum jacket so the skid could sit outdoors.

0
View Larger More Details

Ineos – Eastern, OH

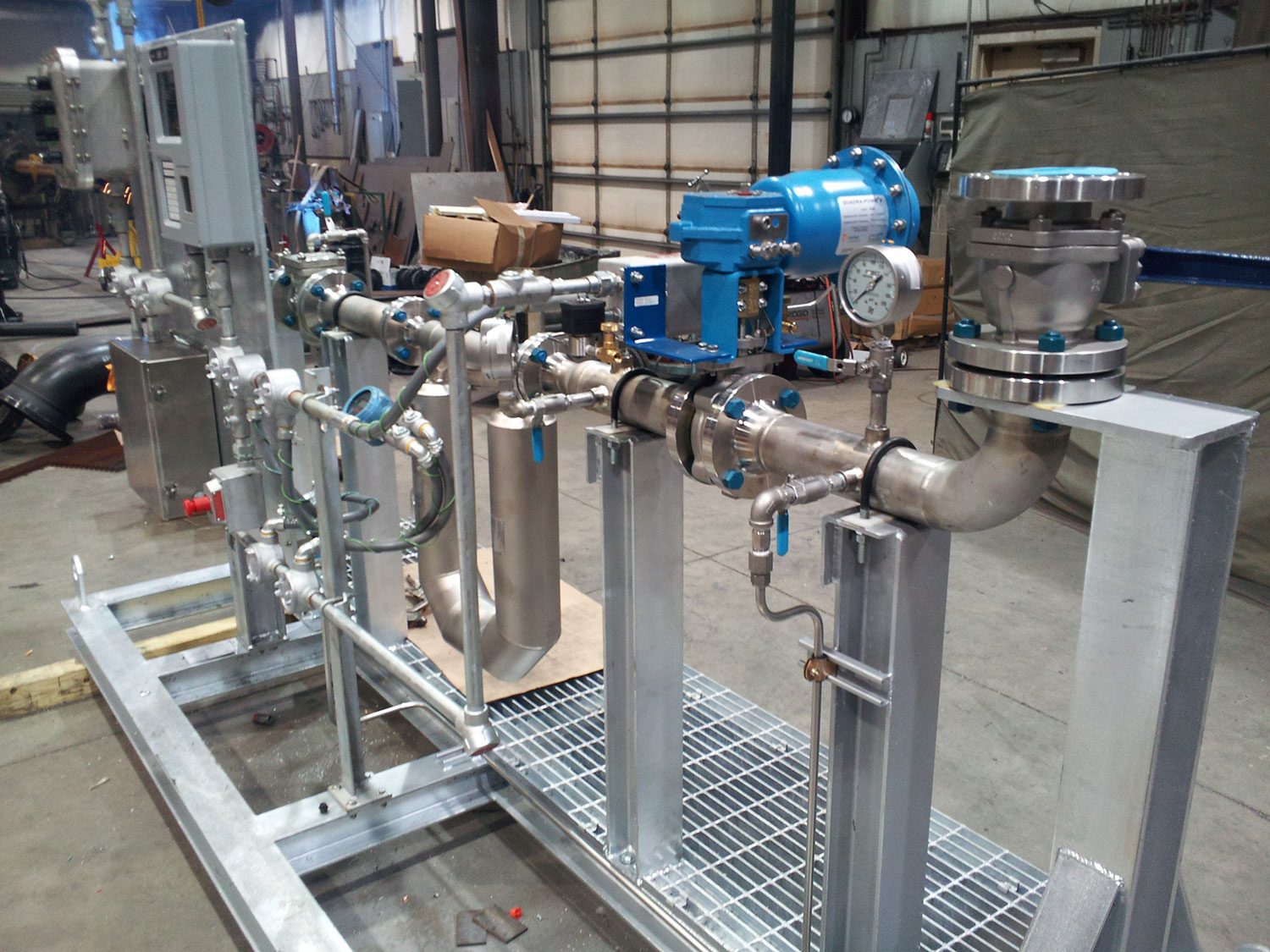

Stainless steel condensate truck loading skid. We built the frame, supports, all piping, welds, electrical wiring, and testing.Several iterations were added to this particular skid in our shop after it was in service. We have aftermarket repair capabilities to meet ever-changing customer needs.

0
View Larger More Details

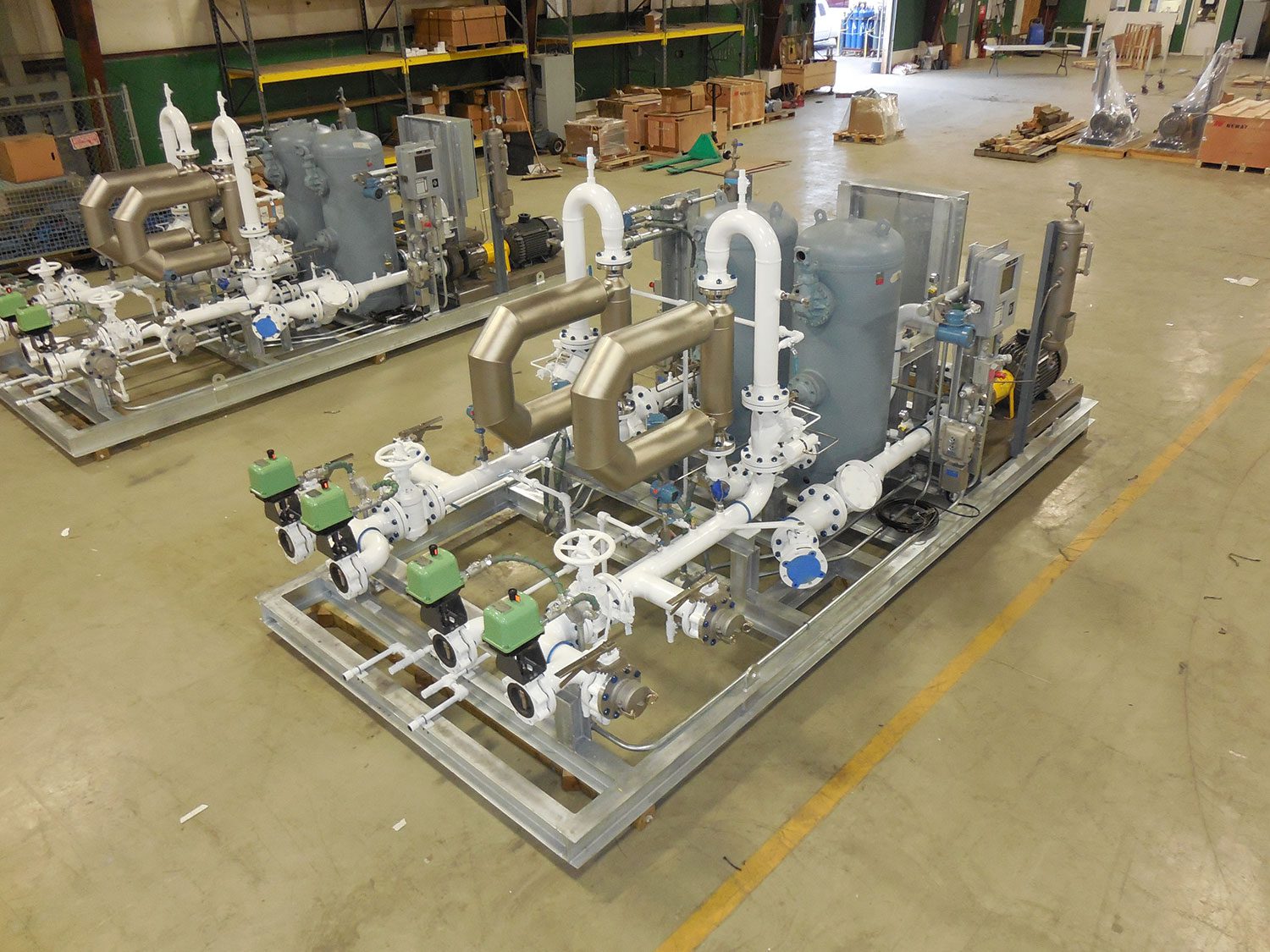

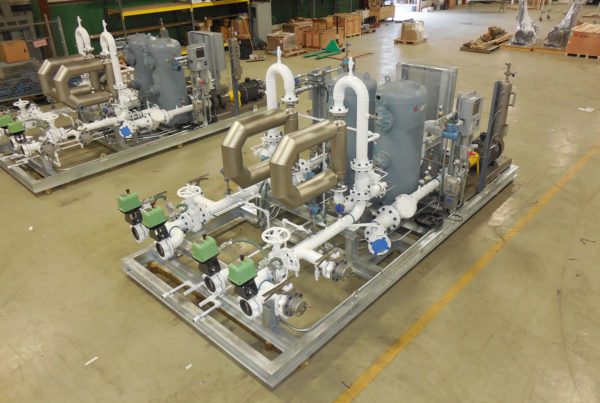

Enlink Midstream – Eastern, OH

These are crude condensate truck offloading skids for Marcellus/Utica shale. The split system at the discharge allowed for products to be diverted to multiple tanks dependent upon product density. We built these completely custom skids including the frame, supports, all piping, welds, electrical wiring, paint and testing.

0
View Larger More Details

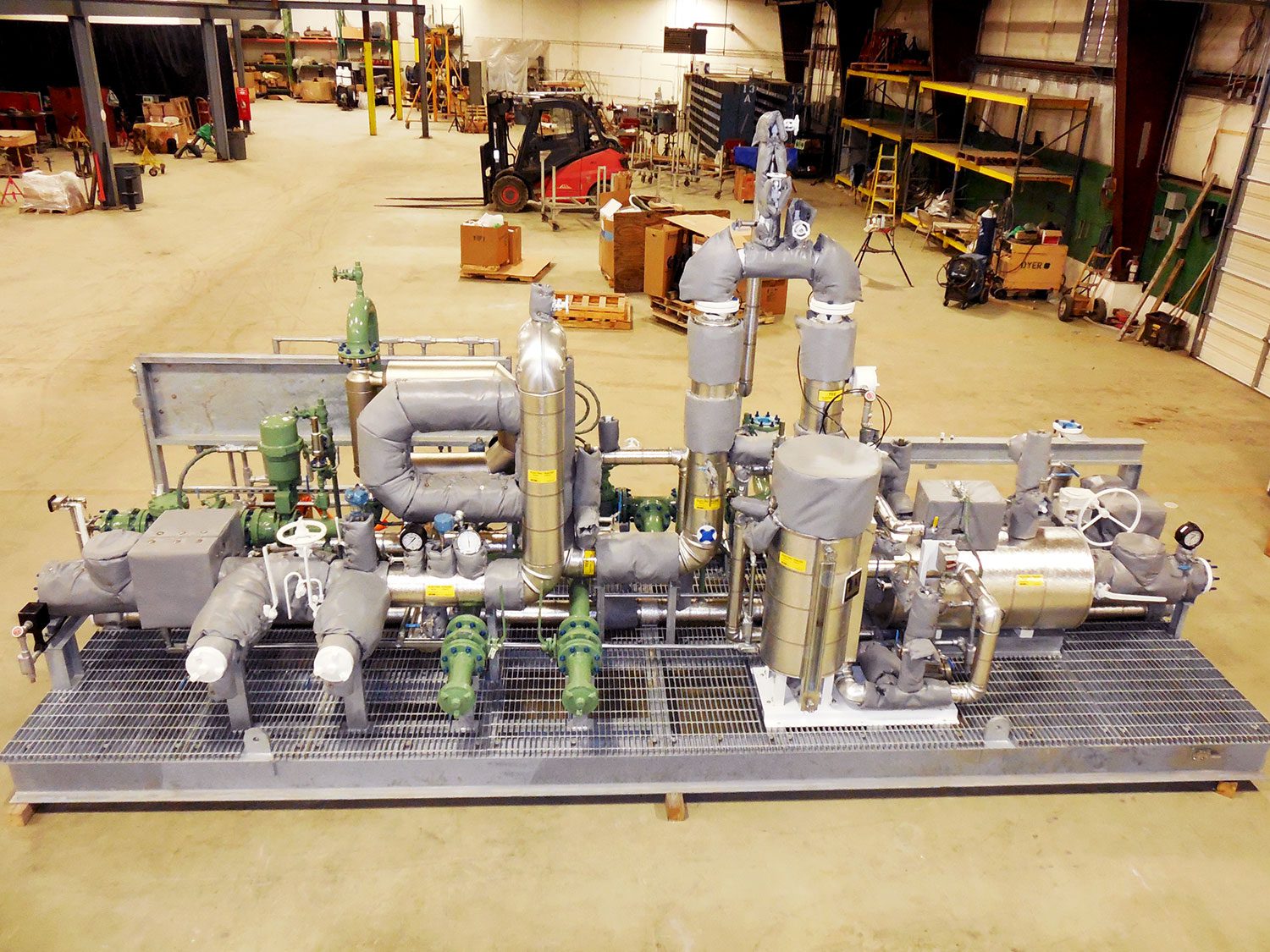

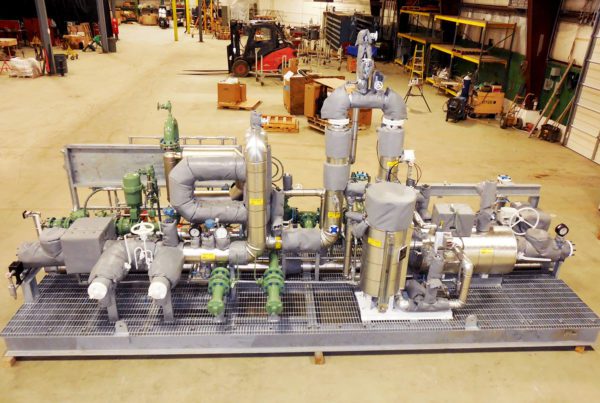

UEO – Eastern, OH

This multi-purpose crude oil skid allowed for both truck loading and offloading in a small footprint. Our client requested the offloading line be heat traced due to high water content in a cold weather climate. We built this completely custom skid including the frame, supports, all piping, welds, paint and testing in under 16 weeks.

0
View Larger More Details

Buckeye Partners – Hartsdale, IN

Dual-run pipeline metering skid with header and proving connections for crude oil service. We built the frame, supports, all piping, welds, electrical wiring, paint and testing.

0
View Larger More Details

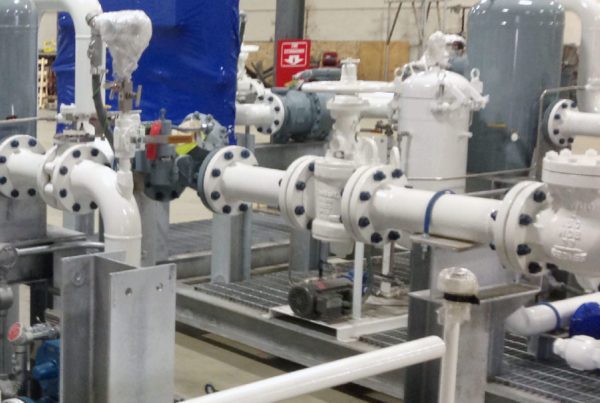

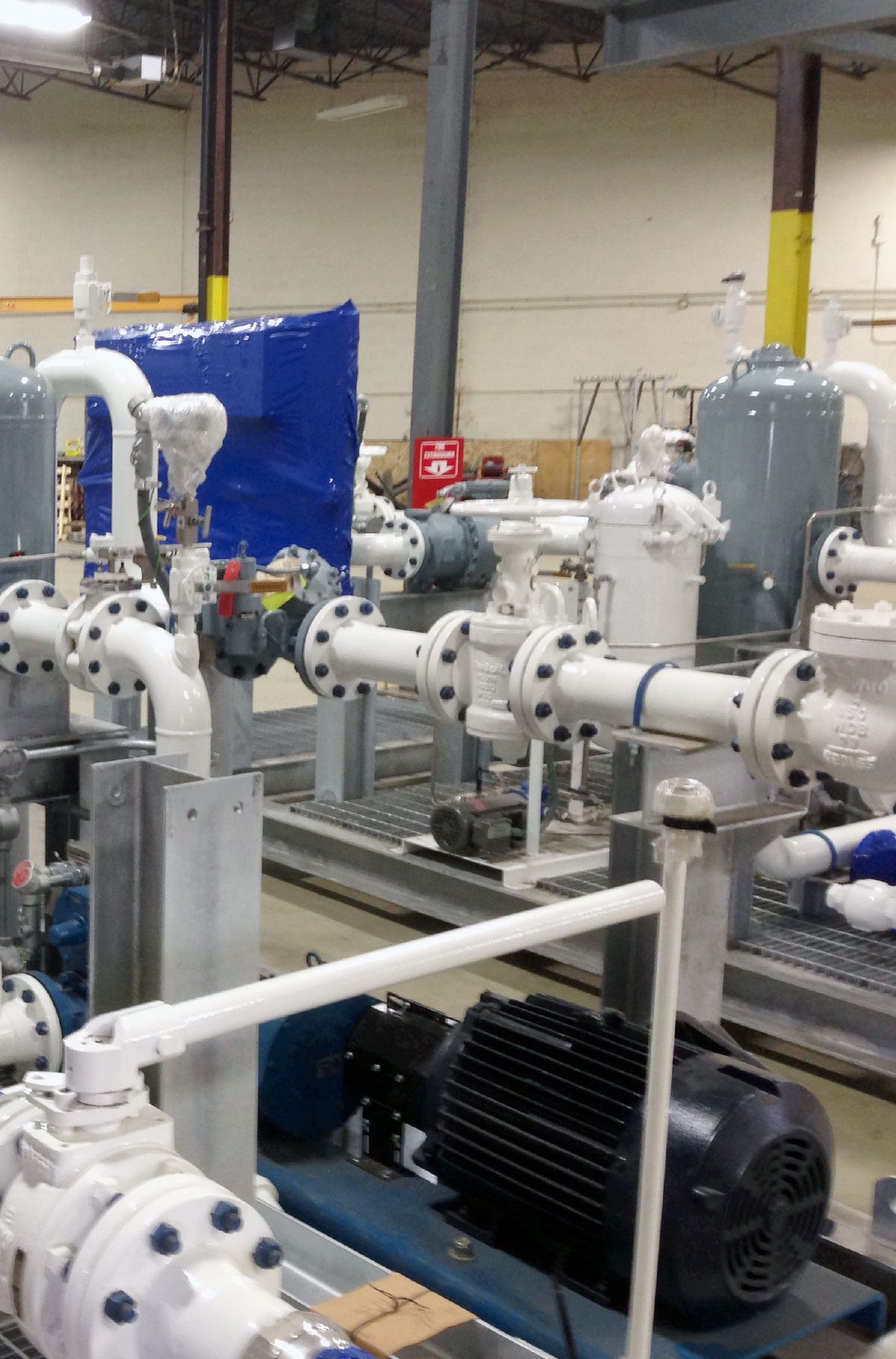

Sunoco Logistics (Energy Transfer) – Marcus Hook, PA

We built these fuel oil railcar offloading skids including the frames, supports, all piping, welds, electrical, paint and testing.

0
View Larger More Details

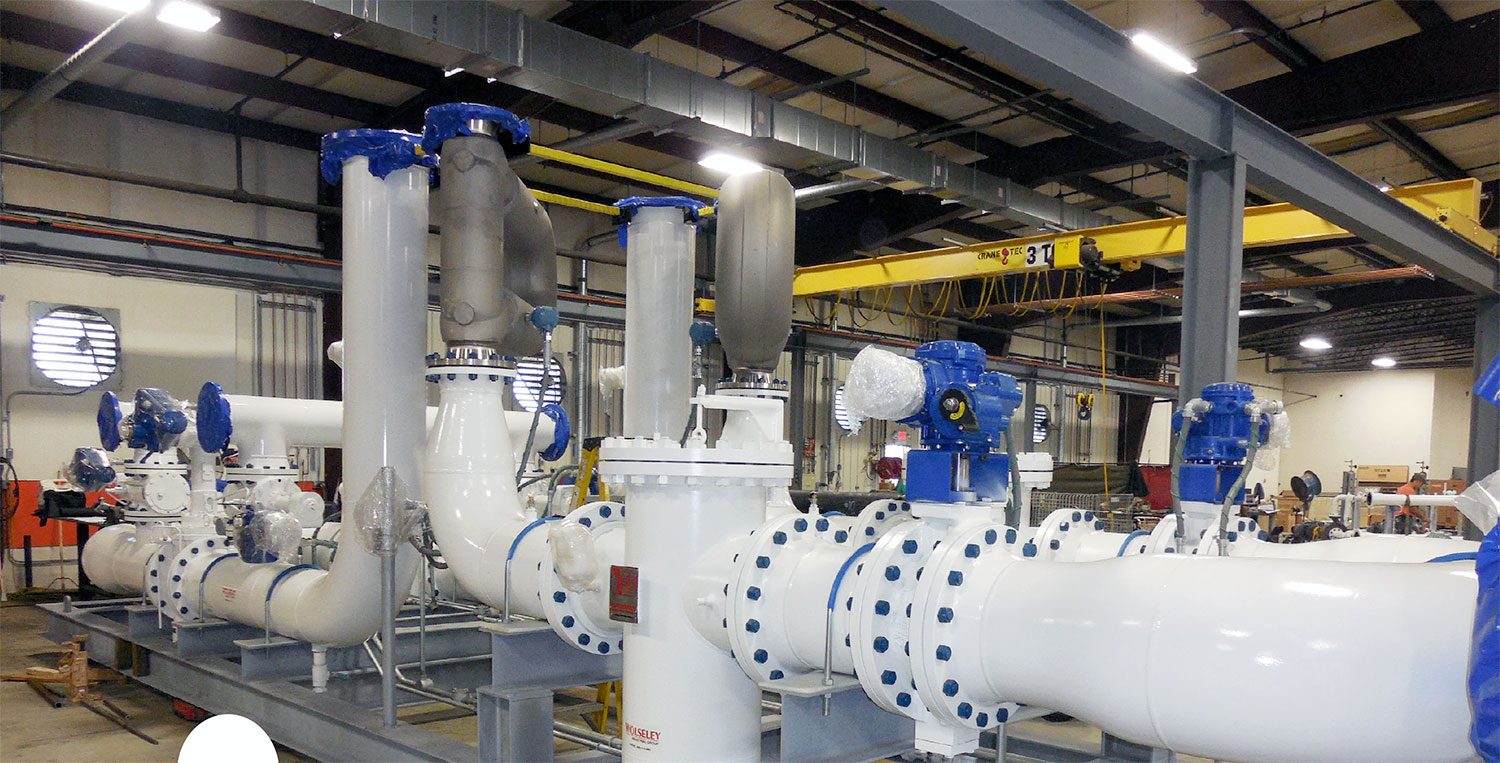

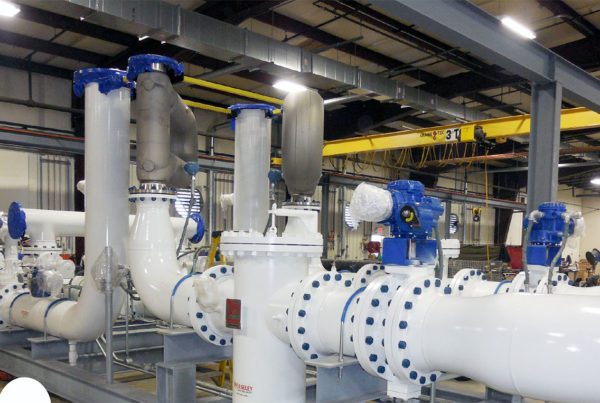

Blueknight Energy Partners – Cushing, OK

Custody transfer, dual-run pipeline metering skid with header and proving connections. We built this metering skid including the frame, supports, all piping, welds, electrical wiring, paint and testing.

0
View Larger More Details

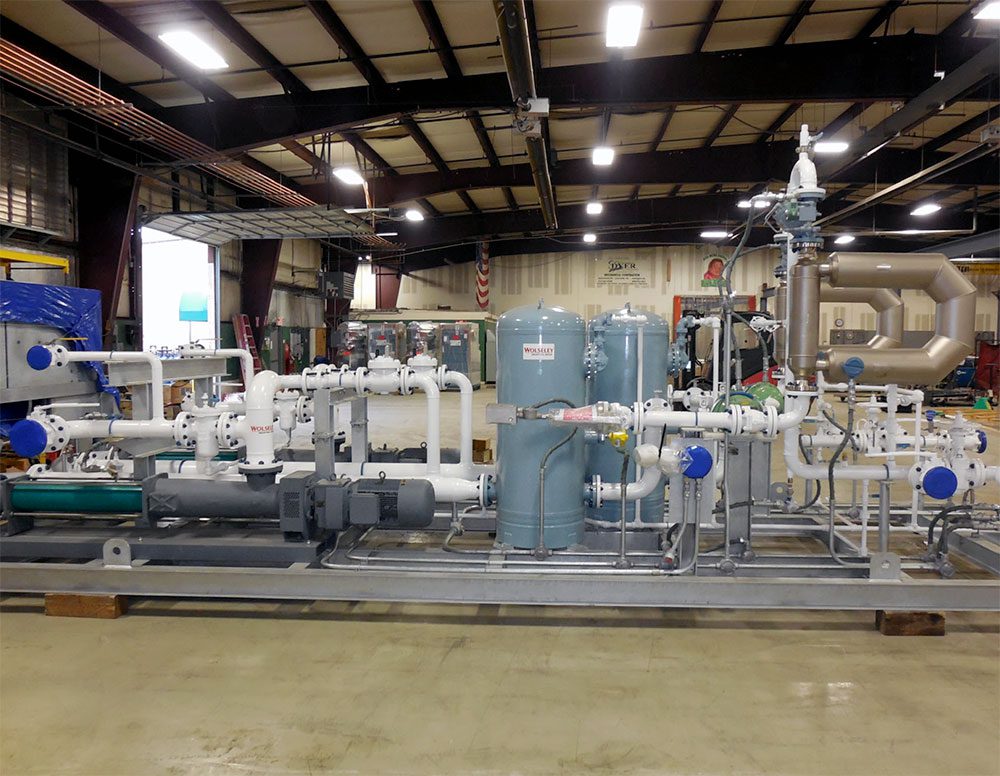

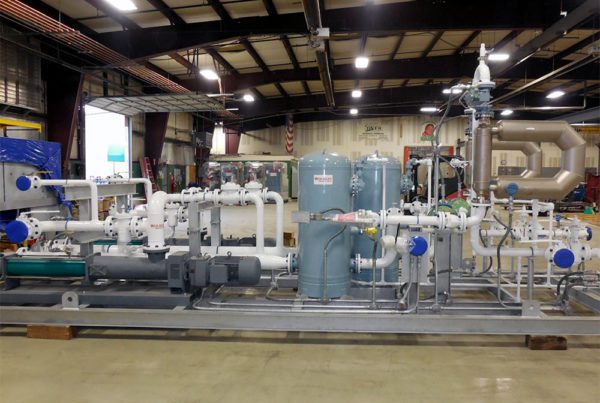

Markwest – Cadiz, OH

We built six truck offloading skids for a very volatile Marcellus/Utica crude condensate application. We built the frames, supports, all piping and welds, electrical wiring, paint and testing.

0

Contact us for more information on how we can help with your project.
